3'' Apollo Single Waterway Monitor3" flange x 2.5" NH Monitor only
Stock Number: 3426
Category: Fire Fighting /
Nozzles
Manufacturer: Akron Brass

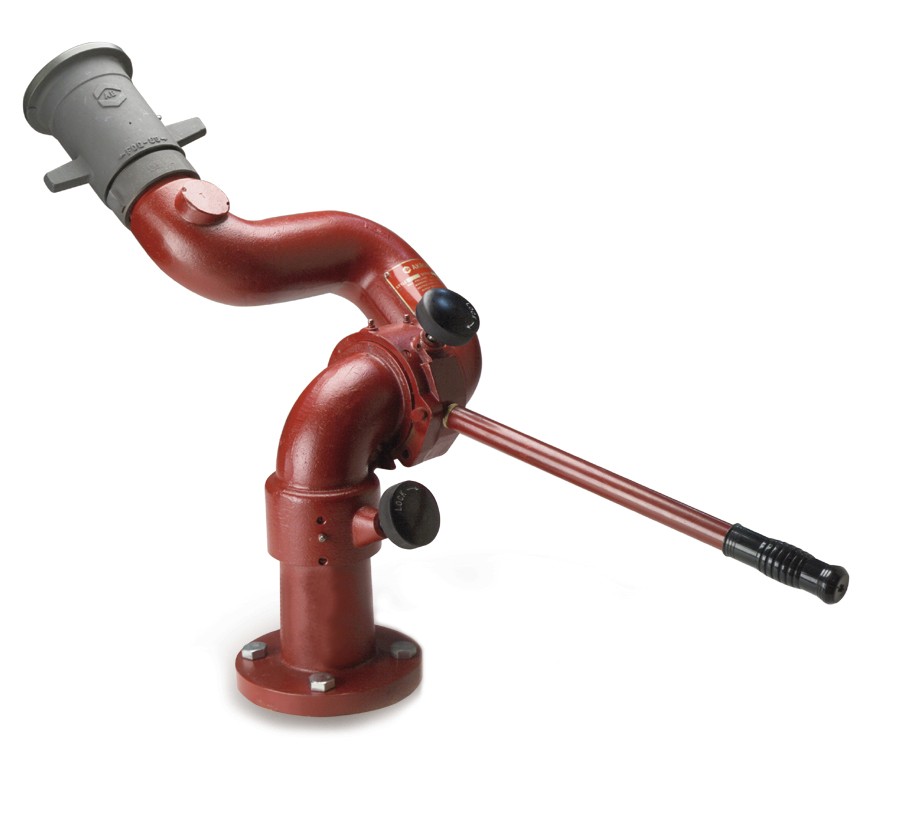

Akron Apollo Single Waterway Monitors provide a simple tiller bar control and manual friction brake operation. The full 3" waterway delivers efficient flows up to 1250gpm.
| Style | 3426 |
|---|---|
| Weight | 21 lbs (9.5 kg) |
| Type | Deck Pipe |
| Material | Pyrolite |
| Brand | Apollo |
| Width | 13.875in (352.43mm) |
| Height | 17in (431.8mm) |
| Depth | 32.75in (831.9mm) |
Features
- Designed for fixed installations in non-corrosive environments
- Durable lightweight Pyrolite construction
- Cast-in turning vanes in each elbow for more efficient flow and improved stream performance
- 360° horizontal and 150° vertical travel
- Elevation 90° above to 60° below horizontal
- A friction lock on both the vertical and horizontal travel
- Built-in pressure gauge and gauge guard
